2.4G Wireless Barcode Laser Scanner for pos system

FOB Reference Price:Get Latest Price
US $25-40 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
CS-952W
type:
Wireless Barcode Scanner
Model number:
CS-952W
Scan Element Type:
CCD
Scan speed:
220/second
EMI/RFI:
FCC, CE, ROHS, IP54
Light Source:
Visible laser (650-670nm)
Colour Depth:
32 Bit
Scan Angle:
Rotor angel ±35°, Inclination ±45°, Elevation ±60°
Scan type:
Bi-directional
Interface Type::
USB
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
2.4G Wireless Barcode Laser Scanner for pos system
handheld barcode scanner's packing details
carton box:
30pcs/ctn
CTN:49*43*43CM
Gross weight:16Kgs
retail package is available
Gross weight:16kgs
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(day) 6 To be negotiated
Product Description


_01.jpg2.4G Wireless Barcode Laser  Scanner  for pos system



Frequency

2.4G

Communication distance

30~150m

Light source

Visible lasing diode; Wave length: 650nm

Scanning mode

Bi-directional single line scanning

Scanning speed

200 scans / sec

Scanning accuracy

0.10mm PCS0.9

Scanning width

30mm @ The scanner window, 220mm @ 200mm

Scanning depth of field

0~350mm (0.43mm, PCS 98%)

Tilt & Elevation & Deflection

30° & 75° & 65°

Interfaces supported

USB

Print contrast ratio

At least 30% reflectivity difference

Error rate

1/5000000

Promoting methods

Buzzer, LED indicator

Scanning ways

Trigger manually or continuous scanning

Decoding abilities

EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China postal code, etc.

Power source

DC5V

Battery type

800mA Lithium ion battery

Working current

130mA (Total power consumption: 650mw)

Quiescent current

70mA

Laser safety

National safety standard Class 2

Electromagnetic compatibility

CE, FCC, DocCompliance

Operating temperature

0 ~ 45 degree Celsius

Storage temperature

-20 ~ 60 degree Celsius

Humidity

Relative humidity 5% ~ 90% (No condensation)

Ambient brightness

Max. 5,000 lux (fluorescence)

Anti-knock

Can withstand 1.8 m free fall

Material

ABS + PC + Rubber

Cable length

Approx. 1m / 3.28ft

Product size

Approx. 8.7 * 7 * 16.8cm / 3.43 * 2.76 * 6.61in

Product weight

Approx. 135g / 4.76oz

Package size

Approx. 20 * 8 * 10.3cm / 7.87 * 3.15 * 4.06in

Package weight

Approx. 324g / 11.42oz

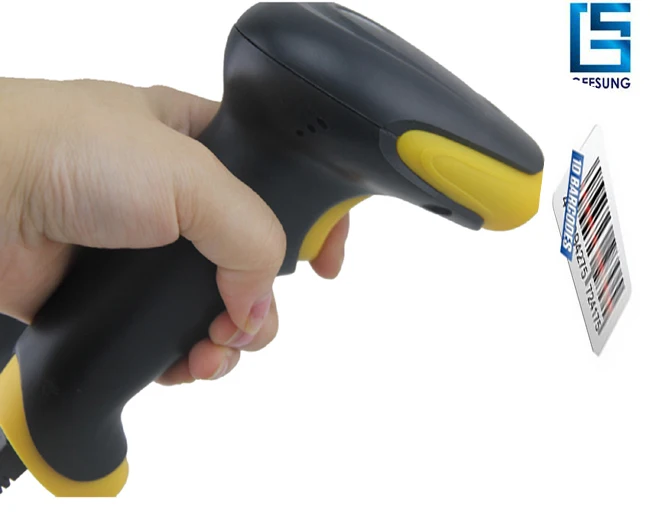

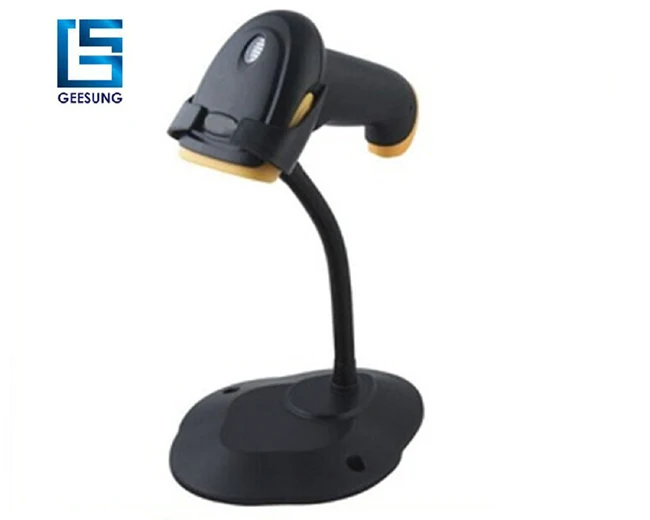

Detailed Images




 2.4G Wireless Barcode Laser  Scanner  for pos system



 with a USB receiverwireless scanner-750 scanner-_05scanner-_06scanner-_07



Features:


Uses 2.4G RF bi-directional wireless data transmission module.
Automatic frequency hopping, strong anti-interference capability.
Superspeed 250Kbps wireless transmission rate.
The communication distance in the open place is up to 150 meters. (The specific distance depends on the use environment.)
Plug-n-play, USB receiver automatic pairing, no any driver is needed.
Easy to check and can storage 5000 barcode data.
Automatic sleep mode and low voltage protection of the battery, largely prolongs the standby time of the battery.
Rich decoding types, advanced long-range functionality and long service life of button (up to 60000000 times).
Support the keyboard output of more than 20 different languages.
If the transmission distance is beyond the effective distance or data is not uploaded successfully, three short alarms will be given for prompt.
The independent mechanical ID enables each scanner has a unique identification number and guarantees that many sets of products cannot disturb each other when working simultaneously.
Bright and sharp laser beam reads thin barcodes accurately and correctly.
Wireless & handheld, very convenient and portable to use.
Compact anti-shock & drop-resistance design, durable & high quality.
Widely used in all walks of life, such as supermarket, bank, warehouse, logistics & express, etc.
