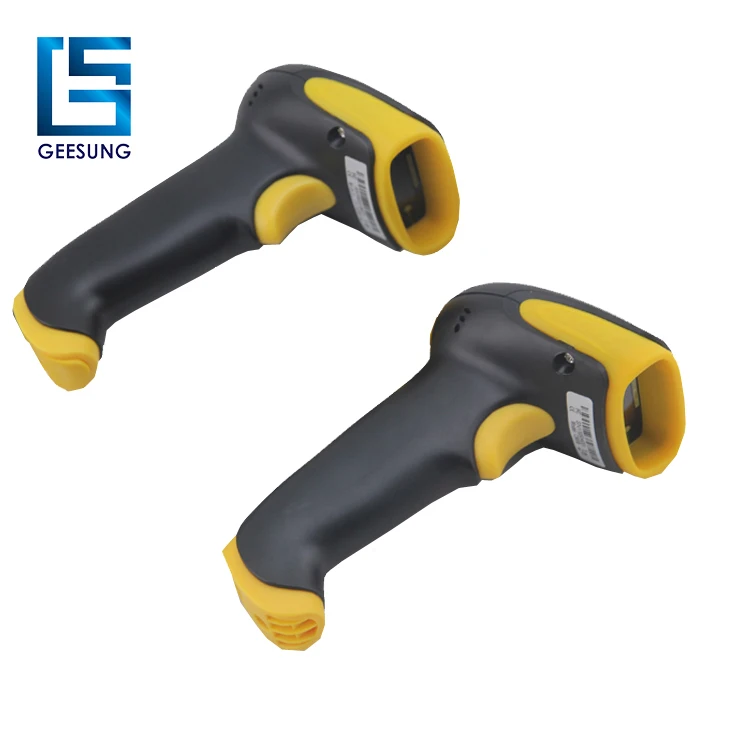

CS658-1D USB Barcode Scanner/ Android Handheld Barcode Scanner

FOB Reference Price:Get Latest Price
US $15-20 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Shenzhen/Hongkong
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock, Used
Type:
Barcode Scanner, Handheld Laser Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Interface Type:
COM, USB, RS232, KBW, TTL
Max Paper Size:
30cm
Optical Resolution:
3.3mil
Scan Speed:
120/second
Brand Name:
OEM/ODM/CARAV
Model Number:
CS-650/CS658
Place of Origin:
Guangdong, China (Mainland)
Color:
Grey & Black
CPU:
ARM 32 Bit
Light Source:
650nm±10% VLD
Print Contrast:
25% minimum
Button life:
500,000 times
Laser life:
12000 hours
Scanning Angle:
Rotor angel ±35°, Inclination ±45°, Elevation ±60°
Current:
50mA(working);25mA(standby);100mA(peak)
Key word:
android barcode scanner
Packaging & Delivery
Packaging Details
The Packing details of android barcode scanner
carton box:
30pcs/ctn
Carton Size:49*43*43CM
Gross weight:16kgs
Delivery Time
1-5 days

CS658-1D USB Barcode Scanner/ Android Handheld Barcode Scanner



Product Description



Pos Barcode Reader 's Features:

1. Auto-induction built in, green design.

2. High scan rate and long reading distance.

3. Excellent decode capability.

4. KBW, RS232 and USB supported.

5. Durable construction combined with future-proofing.





Name CS658-1D USB Barcode Scanner/ Android Handheld Barcode Scanner
ColorGrey & Black
Light SourceVisible laser (650-670nm)
Scan Rate220 scans per second
Reading Distance2.5-600mm (100% UPC/EAN)
Scanner TypeBi-directional
Resolution3.3mil
Print Contrast Minimum25%, minumum reflective difference (@650nm)
Decode Capability

UPC/EAN, UPC/EAN with supplementals, UCC/EAN128, code 39, code 39 full ASCII, code 39 trioptic, code 128, code 128 full ASCII, codabar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5…

Interfaces Supported TTL, RS232, KBW, USB
Scanning AngleRotor angel ±35°, Inclination ±45°, Elevation ±60°
Operating Temperature 0°C~50°C
Storage Temperature -40°C~ 70°C
Humidity 5%~95%  relative humidity, non-condensing
Voltage DC+5V+/-5%
Current 100 mA
Idle Current <40 mA
Power Source Host power or external (RS232) power supply
Dimensions L165.42mm X W69.72mm X H89.67mm
Weight 140g (without stand)
Electrostatic Discharge Confirm to +/-15KV air discharge and +/-8KV of contact discharge
Drop Specifications Withstands multiple 1.5m drops to concrete
EMI/RFI FCC, CE, ROHS, IP54
Laser Safety CDRH class 2 laser product
Detailed Images





Barcode Omni direction Reader optional
