Factory price Industrial All-In-One Touch Panel Pc Industrial PC

FOB Reference Price:Get Latest Price
US $380-435 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Screen Size:
8"
Type:
Resistive
Interface Type:
USB
Resolution:
1024 x 768, 1024*768
Brand Name:
Carav/OEM/ODM
Model Number:
AIO-8000
Place of Origin:
Guangdong, China (Mainland)
Monitor size:
8"
CPU:
On board Intel Atom D525 1.8GHz dual core
Chipset:
Intel NM10 Express Chipset
Memory:
2*204-pinDDR3 DIMM up to 4GB
I/O:
4*USB 2*COM 1*VGA/LAN//Audio OUT/MIC IN/S/PDIF/POWER DC
Hardisk interface:
2.5" SATA (SSD optional)
Touch type:
4 wires resistive touch
LCD color:
16.7M colors
Life time:
Single-point 10000,000 times, Draw lines 100,000 times
Supply Ability
Supply Ability:
2500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
color gift box
Port
Shenzhen/HK
Lead Time :
7-15 working days after the payment confirmed

Factory price Industrial All-In-One Touch Panel Pc Industrial PC(AIO-8000)


Advantages:

1. sample is avaliable

2. CE/RoHS certificate are approval

3. good quality

4. competive price

5.12 month warranty

6.1800 units sales per month

7.Wall mount bracket/Rack mount/VESA bracket optional

8.SDD: 1GB-4GB CF/8GB-512GB SDD, industrial grade -40°~+85° optional





Product Display:

Front→ 10 inch.jpg

Succinct, Natural and curve smoothing frontal appearance


Side→IMG_4019.JPGPanel PC

Fanless Ultra slim Panel PC



Product Features

n Standard with  Intel® AtomTM    Dual-core processor

n High brightness ,Full view angle IPS TFT panel

n Multi-directional heat- releasing structure

n Built-in W-Lan Antenna(802.11b/g/n)

n Ultra slim metal design , beautiful ,durable and rugged

n Independent graphics NVIDIA ION2  and support 1080p HD photo quality



SBC Model:     ALL IN ONE special & professional SBC

CPU:     On board Intel® Atom  D525 1.8GHz dual core

BIOS:    Award BIOS 4/8Mbit SPI Flash ROM

Chipset:    Intel NM10 Express Chipset

Memory:    2×204-pin DDR3 DIMM up to 4GB

Graphics:   Independent Graphics NVIDIA ION2 and support 1080p HD photo quality

Audio Card:    Realtek ALC662 high Definition audio codec

Network:     2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi)

I/O:   4×USB 2×COM 1×VGA/LAN//Audio OUT/MIC IN/S/PDIF/POWER DC

Hardisk interface:   2.5”SATA (SSD optional)

Watchdog:   Support system reset grade   0~255

Front panle grade:   IP65

Power supply:   DC 12V input

Monitor size:    8"

Touch type :    4 –wires resistive touch

Surface hardness:    3H

Transmittance:    ≥80%

Sensitive:    <10ms

Resolution:   1024× 768

Brightness:   400cd/m2(Typ)

Contrast:   700:1

LCD color:   16.7M colors

Pixel Pitch:    0.264 x 0.264

Life time:    Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature:     -20°C~60°C

Storage temperature:    -30°C~80°C

Working Humidity:    5%—95%,40°C,Non –condensing

Vibration:    5-100Hz,Sine wave,11.76m/S2,1minute  X,Y,Z directions,10 times / direction

Shock:   294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case:    Metalcase , shockproof , anti-interference , metal shell(paint)

Installation ways:    Rackmount , Embeded , wall mount ,VESA bracket

Shock:    294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case:    Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways:    Rackmount , Embeded , wall mount ,VESA bracket

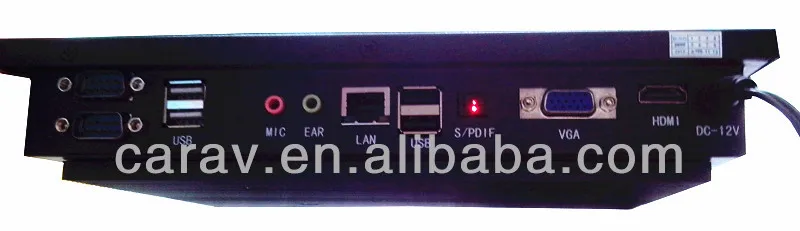

I/O Interface

.jpg

Installation ways.jpg

The base is firm and durable, and can be adjusted to best using position to make sure the effect of without slaking when touching.



Optional  Spareparts

Wireless Lan: 802.11 b/g/n Mini-PCIe Intel® wireless lan module

Standard Bracket: Wall mount bracket /Rackmount /VESA bracket

DDR Memory: 1G-4G

SSD: 1GB-4GB CF, industrial grade  -40°~+85°

           8GB-512GB SSD,industrial  -40°~+85°



Ordering Information

   8"Panel PC , 4-wires resistive touch N/RAM;HD

   8"Panel PC , 4-wires resistive  W/2G RAM;standard HD



Packing information

Power Adaptor, AC Power cable,  Driver Disk, Certificate, Touch Pen Screws

               √                                    √                                    √                         √                               √
